The efficacy of nanofibrous mats, no matter the appearing mechanism (nanofiber bridging and/or matrix toughening), at hindering delamination is properly documented within the literature26,36,37,38,39. Earlier works from the authors32,40,41 relating to the interleaving of nitrile butadiene rubber/poly(ε-caprolactone) (NBR/PCL) rubbery nanofibrous mats show a exceptional enhance within the CFRP interlaminar fracture toughness and damping. This polymer pair acts solely by way of matrix toughening mechanism, as assumed from the polymers thermal properties, and confirmed by SEM delamination surfaces exhibiting an intensive resin deformation and a ductile fracture. Certainly, NBR (Tg < Tamb) and PCL (Tm ≈ 60 °C) could diffuse into the epoxy resin in the course of the curing cycle, resulting in a toughened matrix. It was additionally demonstrated that NBR provides a major toughening means to Nomex nanofibers that, on themselves, result in poor composite interlaminar properties33, in all probability as a consequence of a damaging interference with the crosslinking course of42, apart from a poor adhesion with the epoxy resin. Within the cited circumstances, NBR/PCL mix and NBR/Nomex self-assembled combined nanofibers have been produced by way of single-needle electrospinning.
Right here, NBR options have been utilized as a post-manufacturing remedy onto Nylon 66 nanomats by way of hand impregnation to maximise the toughening impact by combining the nanofiber bridging and matrix toughening mechanisms. Such an strategy bypasses the difficult core–shell methodology and the essential situation of discovering a standard solvent for the 2 polymers within the case a single-needle process could be utilized, as within the case of NBR/Nomex pair. The latter is certainly unattainable with the NBR/Nylon 66 pair, since formic acid, a vital part for solubilizing the polyamide, is a whole non-solvent for the rubber precursor, inflicting instantaneous polymer precipitation. The plain polyamide nanofibrous mats have been obtained utilizing two totally different solvent methods, particularly NyTFA and NyAcF. Furthermore, the electrospinning course of was tailored to realize totally different mat thicknesses comprised within the 3–25 g/m2 vary, as reported in Tables 1 and S1. NyTFA membranes have been produced from an answer with TFA/formic acid/CHCl3 11:55:34 wt as solvent system, whereas NyAcF mats have been electrospun from a formic acid/CHCl3 1:1 wt resolution. In each circumstances, SEM investigations (Fig. 2A,B) present a random deposition of nanofibers, as required to acquire an isotropic reinforcement within the laminate airplane. NyTFA and NyAcF membranes are characterised by comparable fiber diameters: 259 ± 53 nm and 232 ± 44 nm, respectively.
Preliminary NBR impregnation checks of Nylon 66 mats
A number of impregnation checks have been carried out to analyze the impact of the NBR impregnation on the mat morphology and general grammage. Since it’s anticipated that the quantity of loaded rubber must be associated to the impregnating resolution viscosity, NBR options with totally different concentrations—from 0.2 to 10.0 wt%—have been examined. SEM micrographs in Fig. 2C–J present the morphologies obtained for NyTFA mats (NyAcF mats show comparable morphologies).

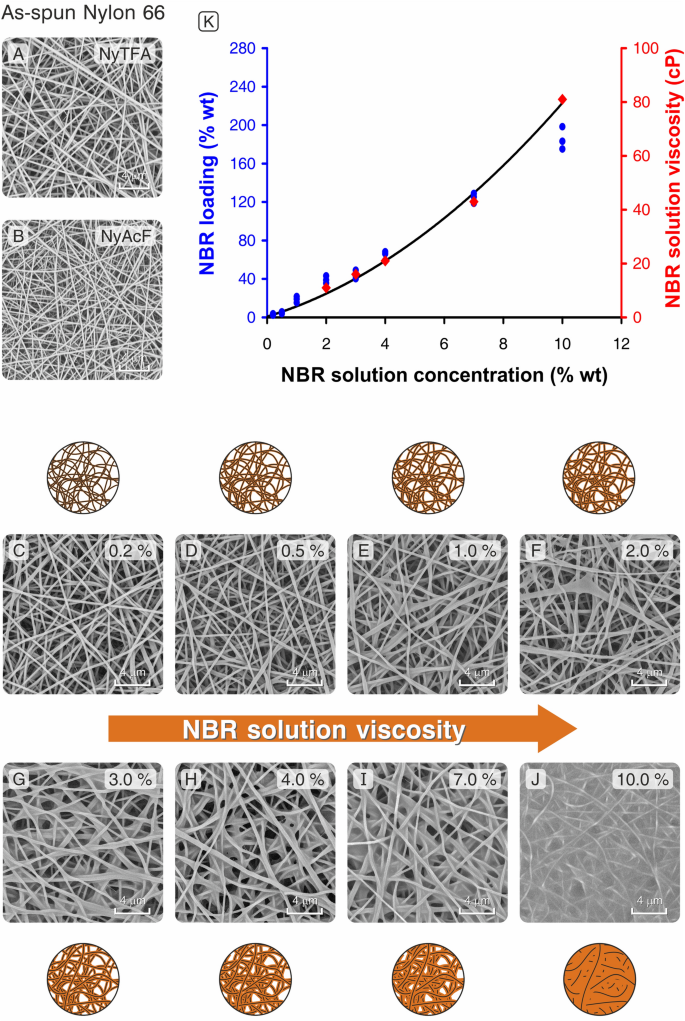

By rigorously selecting the focus of the impregnating resolution, it’s potential to modulate the NBR loading onto the Nylon nanofibers (Fig. 2K), particularly a low loading (2–6 wt%, Fig. 2C,D), a average loading (20–60 wt%, Fig. 2E,F), or a excessive rubber deposition (120–130 wt%, Fig. 2I). The very best concentrated resolution (175–200 wt% of rubber loading, Fig. 2J) causes the whole mat porosity loss in favour of an interfibrous movie formation; nonetheless, this situation would take away the benefit of utilizing a extremely porous medium. The usage of NBR options with a rubber focus beneath 1.0 wt% (Fig. 2C,D) results in a rubber loading not increased than 5–6 wt%, with out producing any morphological distinction with respect to the Nylon 66-unmodified mat (Fig. 2A). The rubber loaded on the Nylon nanofibers is clearly associated to the viscosity of the impregnating options, as much as saturation on the highest concentrations that, in info, corresponds to the above mentioned bulk movie formation, as seen in Fig. 2K.
Analysis of Mode I interlaminar fracture toughness
The interlaminar fracture toughness of the nanomodified CFRPs was assessed by way of Double Cantilever Beam (DCB) checks. Throughout the check, the specimen beams are subjected to a perpendicular load with respect to the crack propagation airplane (Mode I loading mode). The ensuing vitality launch fee (GI), calculated from the delamination check information, will be related to two totally different crack propagation levels: the initiation stage (GI,C), by which the delamination onset begins from the unreal crack triggered by the Teflon movie inserted throughout lamination, and the propagation stage (GI,R) ensuing from subsequent crack developments.
DCB checks on low-amount NBR-impregnated mats
Two impregnating NBR options (0.2 wt% and 1.0 wt%) have been chosen to judge the affect of low NBR loadings on Mode I interlaminar fracture toughness. The investigation has been carried out utilizing each Nylon 66 membrane sorts (NyAcF and NyTFA), having a median mat thickness of 40 and 90 µm, and equal to grammages within the 10–11 and 25–27 g/m2 vary, respectively (see Desk S1 for particulars). The great settlement between grammage and thickness within the NyAcF and NyTFA methods stems from the same fiber diameter attained, as demonstrated by a earlier work investigating the grammage-thickness relationship44.
Consultant R-curves (fracture toughness vs. delamination size curves) are proven in Fig. 3A,C for CFRPs modified with NyAcF and NyTFA, respectively. At first look, some vital variations will be highlighted, with some mats capable of enhance GI considerably whereas others noticeably worsen it. Specifically, GI outcomes present a basic optimistic motion of NyAcF mats towards delamination (Fig. 3A,B). Unmodified NyAcF nanofibers can already improve GI between 53 and 64%, no matter the mat thickness. In contrast, plain NyTFA mats trigger a discount of the interlaminar efficiency when a 90 µm membrane is interleaved, resulting in a halved GI (Fig. 3C,D).
When contemplating the circumstances with a optimistic affect of the nanofibrous membrane interleave (NyAcF), the addition of skinny NBR coatings to the fibers doesn’t additional enhance the interlaminar fracture toughness. Concluding, low and really low rubber loadings don’t additional improve GI considerably, with just a few circumstances displaying an extra optimistic contribution in comparison with the plain Nylon membrane, corresponding to NyAcF_40/0.2, NyAcF_40/1.0 and NyAcF_90/1.0 (as much as + 65% in GI,C and + 90% in GI,R). Furthermore, thicker nonwovens (NyAcF_90 sequence) give nearly the identical reinforcing motion as thinner ones (NyAcF_40 sequence). Even when plain Nylon 66 fibers behave poorly (NyTFA sequence), the rubber doesn’t improve the reinforcing motion of plain polyamide. Furthermore, the thickness of the membrane performs a disruptive function on this case, with each plain and rubber-loaded 90 µm NyTFA mats all inflicting a extreme GI discount (as much as − 65%); in distinction, the 40 µm ones have an nearly impartial impact on the delamination behaviour.
Since high-thickness membrane manufacturing requires extra processing time, apart from the rise of ultimate weight and dimensions of the nanomodified CFRPs, additional investigations are carried out by solely integrating mats with an outmost 40 µm thickness and by loading increased rubber quantities.
DCB checks on average NBR-impregnated mats
The outcomes offered within the earlier part present three most important info: (i) NyAcF and NyTFA mats, though manufactured from the identical Nylon 66, when interleaved in CFRPs behave in a different way towards interlaminar fracture toughness; (ii) mats with a excessive thickness, even when impregnated with rubber, result in outcomes similar to 40 µm mats or worse than the reference laminate; (iii) a skinny NBR coating doesn’t considerably improve GI with respect to plain Nylon 66 nanofibers. These findings level to the truth that the bridging mechanism is predominant as a result of poor rubbery fraction and that the thermoplastic nanofibers efficiency governs the general reinforcing impact in these situations. Doable explanations for the totally different motion of NyAcF and NyTFA mats (level i) will likely be mentioned later. For the explanations defined in factors ii and iii, mats with a most 40 µm thickness and a better NBR loading have been investigated: 10, 20, and 40 µm membranes have been thus impregnated with 3.0 wt% and seven.0 wt% NBR options. Their viscosity ought to nonetheless assure ample retention of the mat porosity to make sure its efficient impregnation by the prepreg-delivered matrix, as confirmed by floor SEM pictures (Fig. 2G,I). The statement of the mat throughout its thickness (part view, Fig. 4) reveals that utilizing the three.0 wt% NBR resolution barely impacts the mat morphology, which is very paying homage to the plain Nylon 66 one, aside from a extra compact side. In contrast, utilizing the 7.0 wt% impregnating resolution has a extra related affect on the nanofibrous membrane, lowering the voids as results of the retention of some NBR fraction between nanofibers. The totally different NBR loadings, already considerable from SEM observations, are confirmed by the mats’ grammage and loaded rubber, as reported in Desk 1.
These Nylon/NBR mats have been chosen to match the anti-delamination efficiency delivered by comparatively excessive NBR loadings (40–300 wt% with respect to plain polyamide nanofibers), nonetheless avoiding the formation of a compact movie because it occurs when impregnating with the very best concentrated rubber resolution (10.0 wt%, Fig. 2J).
Concerning the DCB checks on NyTFA nanomodified laminates (Fig. 5A,B and Desk S2 in Supporting Info), two most important issues will be drawn. The primary one is that beneath 40 µm the membrane thickness impacts the vitality related to the interlaminar fracture. Certainly, plain NyTFA mats present a restricted (however vital) most enhancement of GI solely when 20 µm mat is built-in (40–50% of GI enchancment for NyTFA_20). Decrease or increased thicknesses don’t nearly modify GI, whereas within the already mentioned case of NyTFA_90 there’s a extreme GI discount. The second consideration is that rubber-coated nanofibers with a major quantity of NBR loaded, above 40 wt% (Desk 1), present an considerable reinforcing impact (as much as + 84% in GI,C and + 157% in GI,R). On this case, certainly, the damaging efficiency highlighted above for NyTFA sequence adjustments right into a optimistic contribution towards delamination.
No vital variations are evidenced between the 2 totally different NBR loadings, making using membranes with the decrease rubber content material preferable to restrict the ultimate laminate weight enhance. The perfect general delamination efficiency is thus achieved through the use of NyTFA_20/3.0 mat. Much more promising outcomes are obtained utilizing intermediate rubber-loaded NyAcF mats (Fig. 5C,D and Desk S3 in Supporting Info). All of the membranes impregnated with a 3.0 wt% NBR resolution present a excessive delamination hindering motion and a major efficiency enchancment with respect to the plain NyAcF mats. The perfect outcomes are obtained by integrating the NyAcF_20/3.0 mat: + 91% in GI,C and + 182% in GI,R.
Totally different behaviour is proven by NyAcF mats impregnated with a 7.0 wt% NBR resolution. On this case, solely the thinnest mat advantages from rubber impregnation (+ 44% in GI,C and + 152% in GI,R), whereas the others carry out worse than the reference laminate. Positively, they behave equally to some NyTFA mats, which act as a releasing movie when built-in into the epoxy laminate. Determine 6A shows the GI fold change in relation to the share of loaded rubber on the Nylon 66 mat. The achieved efficiency can’t be solely defined by contemplating the rubber proportion loaded on the nanofibrous mat. Usually, loadings beneath 100% present GI enhancements of fifty–150%, whatever the mat kind (NyTFA or NyAcF) and mat thickness. Nonetheless, it’s unattainable to affirm that main NBR loadings all the time result in worse efficiency. For instance, 10 µm mats, though having an NBR loading > 200%, result in + 30–50% in GI,C and + 110–150% in GI,R. In all probability, the presence of a excessive rubber proportion (however not very excessive at absolute values) can compensate for the poor effectiveness of the thermoplastic-only mat, which isn’t thick sufficient to forestall crack propagation. Quite the opposite, when coping with medium and excessive thickness membranes, even an NBR loading proportion not exceptionally excessive can generate decrease enhancements, and even GI efficiency worse than the unmodified CFRP, as NyAcF mats with 20 and 40 µm thickness. Nonetheless, it’s neither potential to imagine that low whole mat grammages, i.e., contemplating the grammage deriving from each Nylon 66 nanofibers and the NBR coating, all the time give the perfect outcomes (Fig. 6B).
Grammages within the 5–11 g/m2 vary show a great reinforcement motion towards Mode I delamination. Simply solely 5 g/m2 mat (NyAcF_10/3.0) permits to extend GI,C of 51% and GI,R of 110%, whereas nearly doubling the ultimate grammage, NyAcF_20/3.0 mat, provides the perfect absolute outcomes: + 91% in GI,C and + 182% in GI,R. It appears, in reality, that the ultimate mat efficiency derives from a posh interaction of many alternative components based mostly on the overall quantity of supplies, their precise composition (relative fractions of thermoplastics and rubber), morphology, and traits of the electrospun resolution. This reality makes it troublesome to extrapolate probably the most promising “set” of parameters resulting in an optimized formulation, stopping them from being clearly recognized and separated independently from each other.
By evaluating the Mode I delamination of rubbery-reinforced laminates, the best-balanced efficiency is achieved by integrating 20 µm mats impregnated with NBR resolution at 3.0 wt%, whatever the NyAcF or NyTFA membrane kind. Certainly, the GI,C and GI,R enhance by 80–90% and 150–180%, respectively, nonetheless sustaining a low general mat grammage of 9–10 g/m2.
The outcomes achieved by interleaving such rubber/thermoplastic nanofibers reveal an efficient enhance of the CFRP interlaminar properties. Literature information26,32,33,36,37,38,39,40,45,46,47,48,49,50 relating to polyamide nanomodification with Nylon 6 and 66 typically report enhancements within the Mode I fracture toughness within the 25–60% vary (Fig. 7), with few exceptions in each instructions (decrease and better GI values). Such enhancements align with these recorded upon modification with plain Nylon 66 nanofibers (as much as + 64% utilizing NyAcF mats). Due to this fact, the efficiency hole between as-spun polyamide nanofibers and rubber-coated one will be completely attributed to the beneficial motion of NBR, as beforehand discovered33 for Nomex nanofibers combined with the identical rubber.
A comparability of the efficiency enhancements delivered by the proposed rubber/thermoplastic nanofibers with comparable methods shouldn’t be potential since, to the perfect of the authors’ information, using rubber as a “coating” for thermoplastic nanofibers is unprecedented. Probably the most comparable works for a tough comparability are (i) Nylon/PCL core–shell nanofibers34,35, and (ii) NBR/Nomex ones33. Within the first case, the PCL shell, added to the polyamide by way of core–shell electrospinning approach, permits reaching an increment of G as much as + 65%. Within the latter, combined NBR/Nomex nanofibers are obtained by way of the single-needle electrospinning strategy of an emulsion of the 2 polymers which, underneath the precise course of situations, self-assembly. On this case, a “steady association” of the polyaramide surrounded by the NBR is obtained, equally to what occurs by finishing up a core–shell electrospinning. The NBR presence is key to realize a wonderful reinforcing motion (as much as + 180% in GI), whereas the combination of plain Nomex nanofibers, appearing as a launch movie, strongly favours the composite delamination (– 70% in GI with respect to the business unmodified laminate).
Crack path and delamination surfaces evaluation
The SEM investigation of delamination surfaces, taken after the DCB check, is useful to visualise the impact of nanofibers on the fracture morphology with respect to the reference laminate. The floor of the unmodified CFRP is characterised by extensive and clean matrix flat planes accounting for the brittle fracture of epoxy resin (Fig. 8A,B).
Analysing the delamination surfaces of nanomodified composites, it may be seen that Nylon 66 nanofibers are nonetheless seen (Fig. 8C–H), as anticipated based mostly on their thermal properties. Certainly, the curing temperature doesn’t exceed the polyamide melting temperature (135 °C vs 266 °C, as assessed by way of DSC evaluation). Nonetheless, there’s a distinction between samples strengthened with plain Nylon 66 nanofibers (Fig. 8C,D) and with rubber-loaded ones (Fig. 8E–H). Within the latter, the encompassing matrix is toughened, as testified by the presence of plastic deformation. This behaviour turns into extra evident for membranes impregnated with probably the most concentrated (7 wt%) NBR resolution (Fig. 8G,H). Furthermore, the flat planes, nonetheless paying homage to brittle matrix fracture, are fully misplaced, as already noticed when the nanomodification is carried out via polyethylene oxide (PEO)46, NBR/PCL mix32 and NBR/Nomex combined33 nanofibers. In contrast, such planes are seen when the mats are impregnated by the three.0 wt% NBR resolution, highlighting that the matrix toughening is decrease.
On the totally different behaviour of NyTFA and NyAcF mats at contrasting delamination
It has been beforehand acknowledged that the general behaviour of NBR-impregnated Nylon 66 nanofibers is extraordinarily onerous to analyse by way of particular operational parameters contribution. It’s nonetheless true that Mode I delamination checks spotlight that the reinforcing motion of polyamide nonwovens depends upon the beginning electrospinning resolution traits. Generally, NyAcF mats carry out higher than NyTFA ones within the current situations; this assertion is, in reality, true when plain nanofibrous mats are interleaved in CFRPs. Their totally different behaviour could also be defined by the potential totally different thermal and mechanical properties of NyAcF and NyTFA mats achieved in the course of the electrospinning course of.

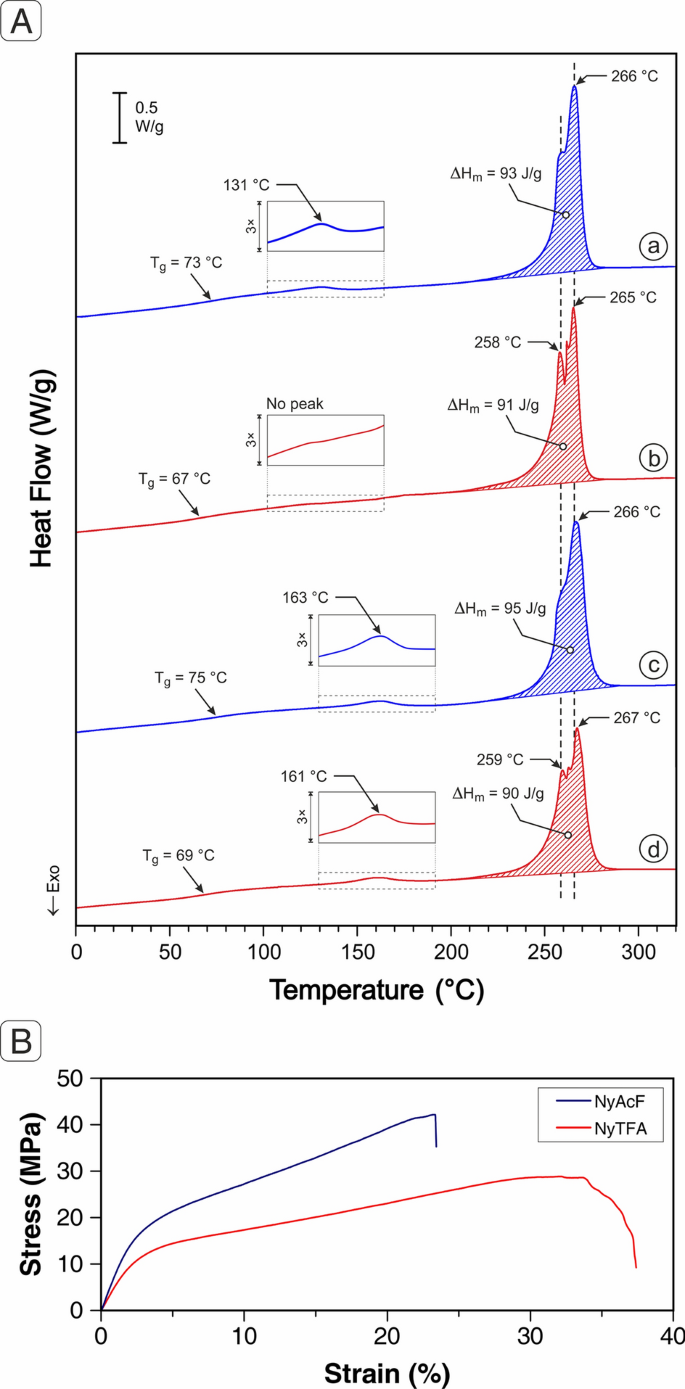

An try at explaining the noticed variations has been addressed by evaluating the thermal behaviour of the samples: DSC evaluation (Fig. 9A, thermograms a,b) reveals, at first look, for the 2 electrospun polymers, a stepwise transition, and a posh endothermic peak: they account for the glass transition (Tg) and crystal section melting, respectively. Recorded information present that the as-spun NyAcF mat shows a better Tg with respect to the certainly one of NyTFA membrane (73 °C vs 67 °C), whereas the diploma of crystallinity related to the endotherm is comparable in each circumstances (χc = 46–47%, contemplating a ΔHm, 100% cryst. = 196 J/g51). Furthermore, whereas each melting endotherms present a most important high-T peak round 266 °C, a decrease temperature sign (258 °C) is clearly seen within the NyTFA mat thermogram, however it’s decidedly much less pronounced for NyAcF nanofibers, being merely a shoulder of the primary peak. Moreover, when focussing on the 130–190 °C area, which must be void of any sign, in NyAcF, a weak peak is detected, which as a substitute lacks within the NyTFA thermogram.
Such a transition has been related within the literature with the so-called Inflexible Amorphous Fraction (RAF)52,53, a fairly anisotropic area the place hydrogen bonds between amide teams randomly however ceaselessly kind even with out the ordered association of the crystalline section. Sometimes, hydrogen bonds kind frequently spaced alongside a single path owing to an accurate association of CO and NH teams in neighbouring chains. Within the RAF, H-bond formation appears certainly to be favoured within the presence of macromolecular prevailing alignment, such because the fibrous association, and may bear alongside as a consequence of the presence of an extra quantity of intermolecular H-bonds. Even when these interactions don’t lead to an elevated crystal section, they may nonetheless assist the intrinsic mechanical efficiency of the fabric, enhancing, in flip, the nanofiber-bridging means. One other impact as a consequence of intermolecular H-bonds may very well be that the amide teams are stored “captive,” lowering their availability to face out the fiber construction. As a consequence, the floor vitality of the nanofibers adjustments, affecting their means to work together with the epoxy matrix. Certainly, it was discovered that nanofibers manufactured from high-performance Nomex nanofibers promote CFRP delamination as a consequence of low adhesion with epoxy resin33.
This speculation is extraordinarily troublesome to check straight on the substrate for the reason that nanofibrous preparations don’t permit for a check of the intrinsic materials floor properties, whereas it’s precisely the fiber spinning that appears on the foundation of the RAF formation. General, the earlier assumptions on thermal properties could indicate an improved NyAcF mat mechanical efficiency with respect to the NyTFA one. Beforehand, it was demonstrated that the variety of nanofiber crossings, associated to the nanofiber diameter, additionally impacts the mat mechanical properties: the decrease the fiber diameter, the upper the nanofiber crossings and the tensile properties44. Within the current case, nonetheless, such an impact must be negligible, on condition that the 2 totally different nanofibrous mat sorts have nanofibers with comparable diameters and grammages. Nonetheless, tensile checks verify (Fig. 9B and Desk S4 in Supporting Info) that the NyAcF mat shows an improved elastic modulus and power (+ 43% and + 35% with respect to NyTFA one, respectively), with the general toughness of each mat sorts which is comparable.
Since nanofibers endure a thermal remedy in the course of the curing course of, which is above the glass transition, the method may by some means have an effect on their thermal behaviour. Membranes have been thus investigated after making use of a simulated curing cycle. The DSC thermograms recorded after curing cycle simulation (Fig. 9A, thermograms c,d) present nearly no relative distinction between the thermal properties of the 2 nanofibrous mat sorts, apart from a slight enchancment of each Tg and crystal section extent (χc = 46–49%). The annealing, carried out in a situation offering some extent of mobility of the amorphous chains, may assist interplay in between the prevailingly oriented macromolecules, and certainly, a temperature upshift of the RAF transition in NyAcF happens (131 °C → 163 °C). Furthermore, a small sign is now seen at 161 °C additionally within the NyTFA: it’s price to level out, nonetheless, that the latter shouldn’t be related to a lift in Tg, which doesn’t transfer upwards as a lot as NyAcF. This behaviour means that selling H-bond formation after fibers are already formed shouldn’t be as efficient as when it’s shaped in the course of the fibers’ manufacturing by way of general supplies efficiency, as it’s, in reality, noticed within the earlier dialogue. The nanofiber bridging efficacy is certainly associated to the nanofibers’ mechanical properties, apart from a great adhesion to the encompassing epoxy resin.
Summarising, the totally different reinforcing results of NyTFA and NyAcF mats at contrasting delamination could derive from totally different (i) mats’ thermal behaviour, (ii) mats’ mechanical properties, and (iii) interplay of the polyamide with the epoxy resin delivered by the prepreg. Concerning level (i), DSC evaluation reveals that there’s solely a slight distinction between the polyamide membranes, restricted to the NyAcF’s Tg, which is increased than the NyTFA one. That is as a result of RAF, which can also be liable for the NyAcF superior tensile properties, on condition that the diploma of crystallinity and fiber diameters are just like NyTFA nanofibers. The higher mat mechanical properties could result in a simpler “nanofiber bridging” (level ii); nonetheless, a distinct nanofiber-matrix adhesion (level iii) as a result of damaging impact of TFA solvent can’t be dominated out. Within the literature, its use as a solvent/co-solvent for Nylon 66 electrospinning (besides for 2 works from the authors44,54) is virtually unexplored. Consequently, studies on Nylon 66 nanofibers electrospun from a TFA resolution built-in into epoxy laminates are presently lacking. Due to this fact, there are not any reference literature information for evaluating the present NyTFA membrane efficiency for contrasting delamination in epoxy-based composite laminates.
